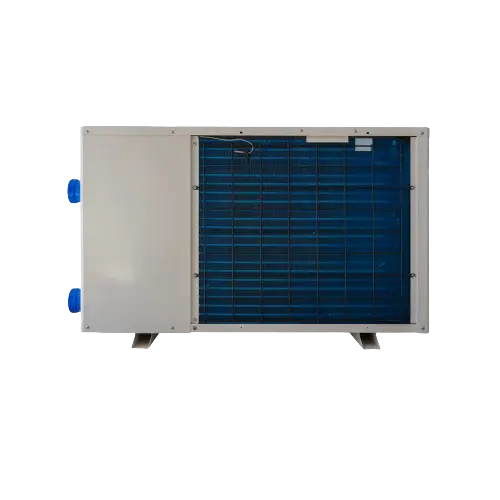

جهاز تبريد الخزانات هو نظام تبريد متكامل يستخدم للحفاظ على درجة حرارة الماء في الخزان ضمن مستويات
Low and suitable, this device is characterized by its effectiveness and ability to control the water temperature, as this device is considered
Ideal for home use to maintain stable and controlled water temperature.
| Box dimensions | Height 77.3 cm | Width 96 cm | 40 cm deep |
| Device dimensions | Height 62.3 cm | Width 90 cm | 34 cm deep |
| Total Weight | 73 KG | ||
| net weight | 62 KG | ||
| Noise | 51 dB | ||
| Ambient temperature | 0 – 53 ºc | ||
| Compressor type | Rotary | ||
| Cooling compound | R – 410 A | ||
| Operating system | cold | ||
| cooling scale | up to 15°C | ||
| Cooling capacity | 12543 BTU | ||
| Input power | 1500 W | ||
| Highest capacity | 62 KG | ||
| Highest current | 11 amps | ||
| Frequency | 60 HZ | ||
| Power | 220 – 240 V | ||
| Country of origin | Made in italy | ||
مواصفات جهاز تبريد الخزانات:
• Free installation.
• Electrical extensions up to 6 meters.
• Free plumbing parts up to 6 meters.
• Jumbo house + filter + filter holder.
• Insulate the water extension pipes to and from the device.
Device accessories

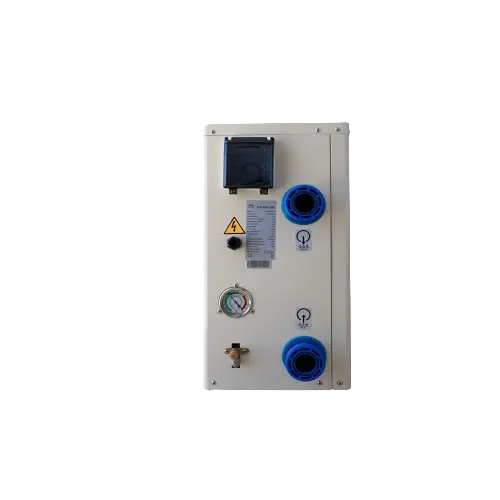

• Control Panel
• 2 connected PVC
• 4 rules
• CATALOGUE
• 1/2 HP pump
Instructions
● The device must be installed in a well-ventilated place.
● The operating capacity of the suction pump should be 1/2 HP.
● Provide a 220-volt power source, provided that the distance does not exceed 5 meters from the device.
● Provide grounding for the power source.
● The power supply wire size should not be less than 6mm.
● Provide a special switch for the device (45 amp heater switch) near the device installation location.
● The device is installed and operated by specialized technicians.
Warranty
• Two-year warranty on electrical parts
• 5 years free service (technician visit)
